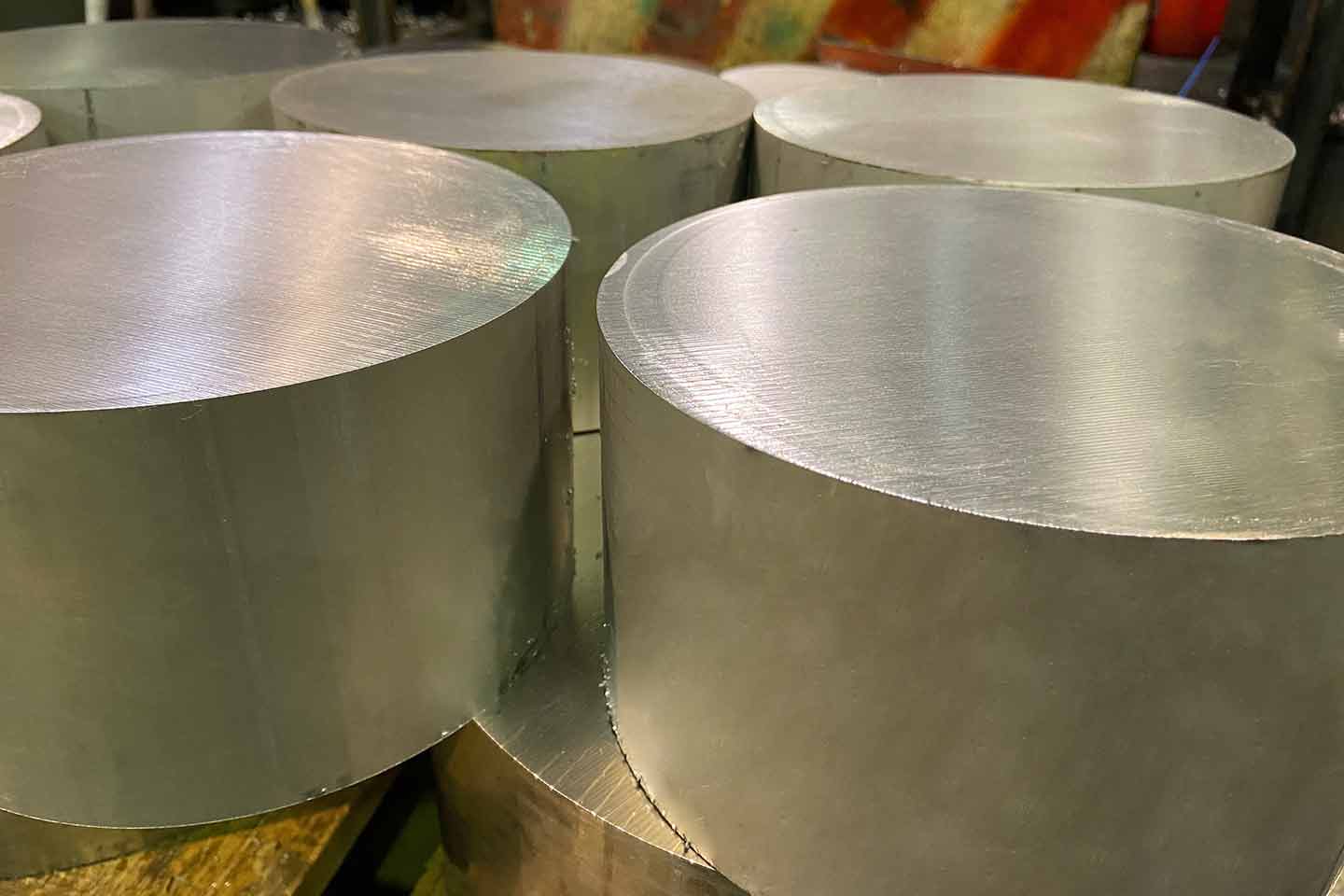

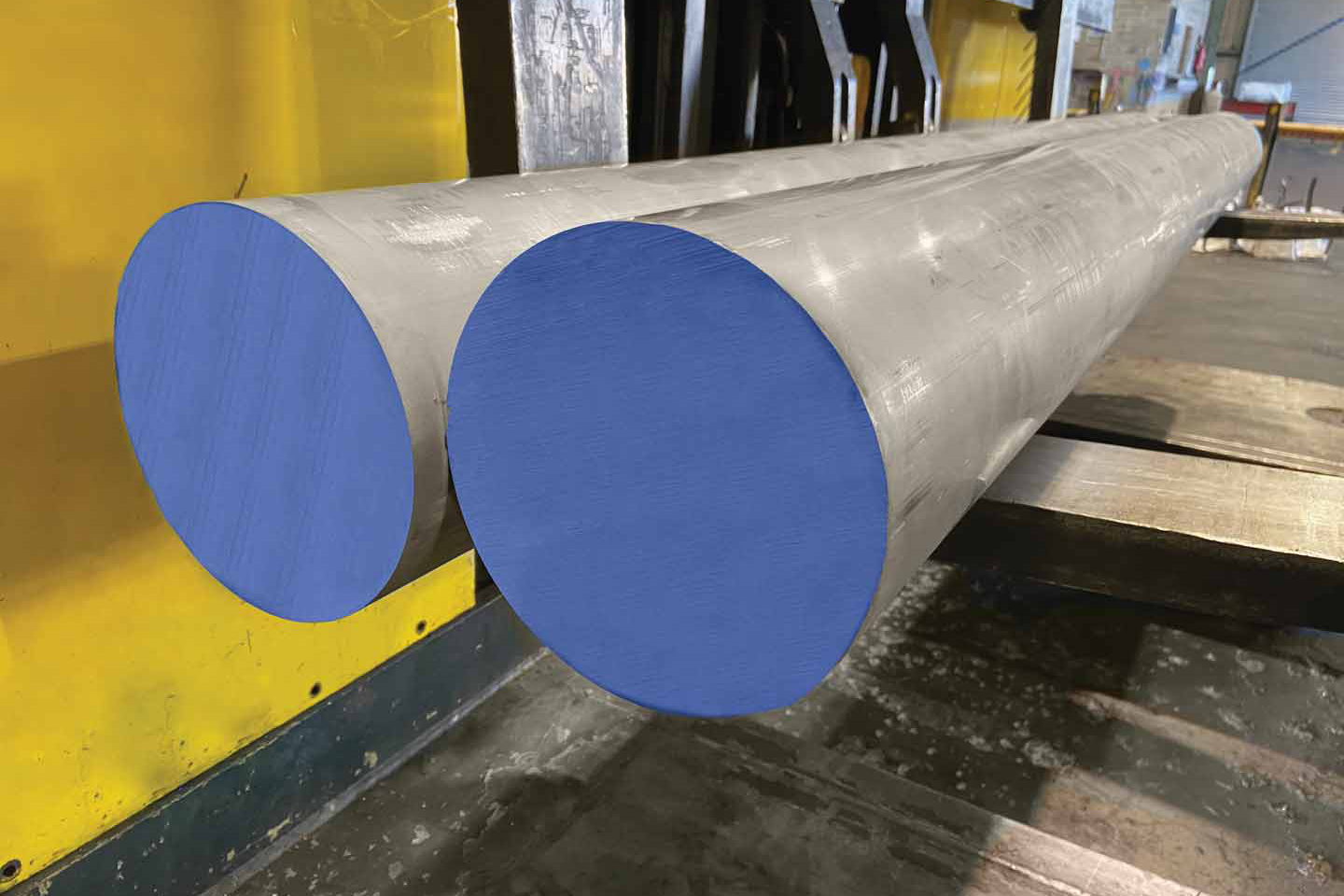

Aluminium Bar 6082T6

Aluminium Bar 6082T6 is the most common general engineering alloy. A very popular heat treatable aluminium alloy designed for all-purpose engineering work. Medium strength is matched by good welding, corrosion resistance & machinability. When bending or forming alloy 6082T6, it is recommended to use the O or T4 temper.

6082T6 provides good machinability in the T6 temper. In plate form, 6082T6 is the Alloy most commonly used for machining.

To view 6082T6 chemical analysis, specification or shapes & sizes please click on the tabs below.

Colour Code:
Colour Code
This product appears in:
Tags: ,


Rounds (mm)
6.00
8.00
10.00
12.00
16.00
20.00
25.00
30.00
32.00
35.00
40.00
45.00
50.00
55.00
60.00
65.00
70.00
75.00
80.00
85.00
90.00
100.00
110.00
120.00
130.00
140.00
150.00
180.00
200.00
220.00
240.00
260.00
280.00
310.00
340.00
360.00
Rounds (inch)
1/8
3/16
1/4
5/16
3/8
7/16
1/2
9/16
5/8
3/4
7/8
1
1 1/8
1 1/4
1 3/8
1 1/2
1 5/8
1 3/4
2
2 1/4
2 1/2
2 3/4
3
3 1/4
3 1/2
3 3/4
4
4 1/2
5
5 1/2
6
6 1/2
7
7 1/2
8
8 1/2
9
9 1/2
10
10 1/2
11
11 1/2
12
12 1/2
13
14
15
16
18
20
Flats (mm)
10x3
10x4
10x5
15x3
15x4
15x5
15x6
15x8
15x10
20x3
20x4
20x5
20x6
20x8
20x10
20x12
25x2
25x3
25x4
25x5
25x6
25x8
25x10
25x12
25x15
25x20
30x2
30x3
30x4
30x5
30x6
30x8
30x10
30x12
30x15
30x20
30x25
40x2
40x3
40x4
40x5
40x6
40x10
40x12
40x15
40x20
40x25
40x30
50x2
50x3
50x4
50x5
50x6
50x8
50x10
50x12
50x15
50x20
50x25
50x30
60x3
60x4
60x5
60x6
60x8
60x10
60x12
60x15
60x20
60x25
60x30
60x40
70x5
70x6
70x8
70x10
70x12
70x15
70x20
70x25
70x40
70x50
80x5
80x6
80x8
80x10
80x12
80x15
80x20
80x25
80x30
80x50
100x5
100x6
100x8
100x10
100x12
100x15
100x20
100x25
100x50
100x80
120x10
120x12
120x15
120x20
120x25
120x30
120x40
120x50
150x10
150x15
150x20
150x25
150x30
150x40
150x50
200x10
200x12
200x15
200x20
200x25
200x30
200x40
200x50
Flats (inch)
3⁄8 x 1⁄4
1⁄2 x 1⁄8
1⁄2 x 1⁄4
1⁄2 x 3⁄8
5⁄8 x 1⁄8
5⁄8 x 1⁄4
5⁄8 x 1⁄2
3⁄4 x 1⁄8
3⁄4 x 1⁄4
3⁄4 x 5⁄16
3⁄4 x 3⁄8
3⁄4 x 1⁄2
3⁄4 x 5⁄8
1 x 1⁄8
1 x 1⁄4
1 x 3⁄8
1 x 1⁄2
1 x 5⁄8
1 x 3⁄4
1 1⁄4 x 1⁄4
1 1⁄4 x 3⁄8
1 1⁄4 x 1⁄2
1 1⁄4 x 5⁄8
1 1⁄4 x 3⁄4
1 1⁄4 x 1
1 1⁄2 x 1⁄4
1 1⁄2 x 3⁄8
1 1⁄2 x 1⁄2
1 1⁄2 x 5⁄8
1 1⁄2 x 3⁄4
1 1⁄2 x 1
1 1⁄2 x 11⁄4
1 3⁄4 x 1⁄4
1 3⁄4 x 3⁄8
1 3⁄4 x 1⁄2
1 3⁄4 x 5⁄8
1 3⁄4 x 3⁄4
1 3⁄4 x 1
2 x 1⁄4
2 x 3⁄8
2 x 1⁄2
2 x 5⁄8
2 x 3⁄4
2 x 1
2 x 1 1⁄4
2 x 1 1⁄2
2 x 1 3⁄4
2 1⁄2 x 1⁄8
2 1⁄2 x 1⁄4
2 1⁄2 x 1⁄2
2 1⁄2 x 1⁄2
2 1⁄2 x 5⁄8
2 1⁄2 x 3⁄4
2 1⁄2 x 1⁄4
2 1⁄2 x 11⁄2
2 1⁄2 x 1 3⁄4
2 1⁄2 x 2
3 x 1⁄4
3 x 3⁄8
3 x 1⁄2
3 x 5⁄8
3 x 3⁄4
3 x 1
3 x 1 1⁄4
3 x 1 1⁄2
3 x 1 3⁄4
3 x 2
3 x 2 1⁄2
3 1⁄2 x 3⁄8
3 1⁄2 x 5⁄8
3 1⁄2 x 3⁄4
3 1⁄2 x 1
3 1⁄2 x 1 1⁄4
3 1⁄2 x 1 1⁄2
3 1⁄2 x 2/td>
3 1⁄2 x 2 1⁄2
4 x 1⁄4
4 x 3⁄8
4 x 1⁄2
4 x 5⁄8
4 x 3⁄4
4 x 1
4 x 1 1⁄4
4 x 1 1⁄2
4 x 1 3⁄4
4 x 2
4 x 2 1⁄2
4 1⁄2 x 3⁄8
4 1⁄2 x 1⁄2
4 1⁄2 x 3⁄4
4 1⁄2 x 1
4 1⁄2 x 2
5 x 1⁄4
5 x 1⁄2
5 x 5⁄8
5 x 3⁄4
5 x 1
5 x 1 1⁄4
5 x 1 1⁄2
5 x 2
5 x 3
5 x 4
6 x 1⁄4
6 x 3⁄8
6 x 1⁄2
6 x 5⁄8
6 x 3⁄4
6 x 1
6 x 1 1⁄4
6 x 1 1⁄2
6 x 1 3⁄4
6 x 2
6 x 2 1⁄2
6 x 3
6 x 4
7 x 1
7 x 1 1⁄2
7 x 2
8 x 1⁄2
8 x 3⁄4
8 x 1
8 x 2
10 x 1
10 x 2
Squares (mm)
6.00
8.00
10.00
12.00
15.00
20.00
25.00
30.00
35.00
40.00
45.00
50.00
60.00
70.00
75.00
80.00
100.00
110.00
120.00
140.00
160.00
180.00
Squares (inch)
1/4
3/8
1/2
5/8
3/4
7/8
1
1 1/4
1 1/2
1 3/4
2
2 1/4
2 1/2
3
3 1/4
3 1/2
4
4 1/2
5
5 1/2
6
6 1/2
7
8
10
12
Tubes (inch) (OD x WT)
3⁄8 x 16swg
1⁄2 x 18swg
1⁄2 x 16swg
1⁄2 x 10swg
5⁄8 x 18swg
5⁄8 x 16swg
5⁄8 x 10swg
3⁄4 x 18swg
3⁄4 x 16swg
3⁄4 x 10swg
7⁄8 x 18swg
7⁄8 x 16swg
1 x 18swg
1 x 16swg
1 x 10swg
1 x 3⁄16
1 1⁄8 x 18swg
1 1⁄8 x 16swg
1 1⁄8 x 10swg
1 1⁄4 x 18swg
1 1⁄4 x 16swg
1 1⁄4 x 12swg
1 1⁄4 x 10swg
1 1⁄4 x 3⁄16
1 3⁄8 x 16swg
1 3⁄8 x 10swg
1 1⁄2 x 18swg
1 1⁄2 x 16swg
1 1⁄2 x 10swg
1 1⁄2 x 3⁄16
1 1⁄2 x 1⁄4
1 5⁄8 x 16swg
1 5⁄8 x 10swg
1 5⁄8 x 3⁄16
1 3⁄4 x 16swg
1 3⁄4 x 10swg
1 7⁄8 x 10swg
2 x 16swg
2 x 10swg
2 x 3⁄16
2 x 1⁄4
2 1⁄4 x 16swg
2 1⁄4 x 10swg
2 1⁄2 x 16swg
2 1⁄2 x 10swg
2 1⁄2 x 3⁄16
2 1⁄2 x 3⁄8
2 3⁄4 x 10swg
3 x 16swg
3 x 12swg
3 x 10swg
3 x 3⁄16
3 x 1⁄4
3 1⁄2 x 16swg
3 1⁄2 x 1⁄4
4 x 16swg
4 x 12swg
4 x 10swg
4 x 1⁄4
4 1⁄2 x 10swg
4 1⁄2 x 1⁄4
5 x 10swg
5 x 1⁄4
5 1⁄2 x 1⁄4
6 x 10swg
6 x 1⁄4
6 1⁄2 x 1⁄4
6 1⁄2 x 1⁄2
6 1⁄2 x 3⁄4
6 1⁄2 x 1
7 x 1⁄4
7 x 3⁄8
7 x 1⁄2
7 x 3⁄4
7 x 1
7 1⁄2 x 1⁄4
7 1⁄2 x 1
7 1⁄2 x 1 1⁄4
8 x 1⁄4
8 x 3⁄8
8 x 1⁄2
8 x 3⁄4
8 x 1
8 x 1 1⁄2
8 1⁄2 x 1⁄2
8 1⁄2 x 3⁄4
8 1⁄2 x 1
9 x 3⁄8
9 x 1⁄2
9 x 3⁄4
9 x 1
9 1⁄2 x 3⁄4
9 1⁄2 x 1
10 x 3⁄16
10 x 1⁄2
10 x 3⁄4
10 x 1
10 1⁄2 x 3⁄4
10 1⁄2 x 1
11 x 1⁄2
11 x 1
12 x 1⁄2
12 x 3⁄4
12 x 1
14 x 1
16 x 1
Equal Angle (inch)
1⁄2 x 1⁄2 x 1⁄16
3⁄4 x 1⁄2 x 1⁄16
3⁄4 x 1⁄2 x 1⁄8
1 x 1⁄2 x 1⁄16
1 x 1⁄2 x 1⁄8
1 x 3⁄4 x 1⁄16
1 x 3⁄4 x 1⁄8
1 1⁄4 x 3⁄4 x 1⁄8
1 1⁄4 x 1 x 1⁄8
1 1⁄2 x 1⁄2 x 1⁄8
1 1⁄2 x 3⁄4 x 1⁄8
1 1⁄2 x 1 x 1⁄8
1 1⁄2 x 1 x 3⁄16
1 3⁄4 x 3⁄4 x 1⁄8
1 3⁄4 x 7⁄8 x 1⁄8
2 x 1⁄2 x 1⁄8
2 x 3⁄4 x 1⁄8
2 x 1 x 1⁄16
2 x 1 x 1⁄8
2 x 1 x 3⁄16
2 x 1 x 1⁄4
2 x 1 1⁄4 x 1⁄8
2 x 1 1⁄4 x 1⁄4
2 x 1 1⁄2 x 1⁄8
2 x 1 1⁄2 x 3⁄16
2 x 1 1⁄2 x 1⁄4
2 1⁄2 x 1 x 1⁄8
2 1⁄2 x 1 1⁄2 x 1⁄8
2 1⁄2 x 1 1⁄2 x 3⁄16
2 1⁄2 x 1 1⁄2 x 1⁄4
2 1⁄2 x 2 x 1⁄8
2 1⁄2 x 2 x 3⁄16
2 1⁄2 x 2 x 1⁄4
3 x 1 x 1⁄8
3 x 1 x 1⁄4
3 x 3 x 3⁄8
3 x 1 1⁄2 x 3⁄16
3 x 1 1⁄2 x 1⁄4
3 x 2 1⁄8
3 x 2 x 3⁄16
3 x 2 x 1⁄4
3 x 2 x 3⁄8
4 x 1 x 1⁄8
4 x 2 x 1⁄8
4 x 2 x 3⁄16
4 x 2 x 1⁄4
4 x 3 x 1⁄8
4 x 3 x 3⁄16
4 x 3 x 1⁄4
5 x 2 x 1⁄4
6 x 2 x 1⁄4
6 x 3 x 1⁄4
6 x 3 x 3⁄8
Unequal Angle (inch)
3⁄4 x 3⁄8 x 1⁄16
3⁄4 x 1⁄2 x 1⁄16
3⁄4 x 1⁄2 x 1⁄8
1 x 1⁄2 x 1⁄16
1 x 1⁄2 x 1⁄8
1 x 3⁄4 x 1⁄16
1 x 3⁄4 x 1⁄8
1 1⁄4 x 3⁄4 x 1⁄8
1 1⁄4 x 1 x 1⁄8
1 1⁄2 x 1⁄2 x 1⁄8
1 1⁄2 x 3⁄4 x 1⁄8
1 1⁄2 x 1 x 3⁄16
1 3⁄4 x 3⁄4 x 1⁄8
1 3⁄4 x 7⁄8 x 1⁄8
2 x 1⁄2 x 1⁄8
2 x 3⁄4 x 1⁄8
2 x 1 x 1⁄16
2 x 1 x 1⁄8
2 x 1 x 3⁄16
2 x 1 x 3⁄16
2 x 1 x 1⁄4
2 x 1 1⁄4 x 1⁄8
2 x 1 1⁄4 x 1⁄4
2 x 1 1⁄2 x 1⁄8
2 x 1 1⁄2 x 3⁄16
2 x 1 1⁄2 x 1⁄4
2 1⁄2 x 1 x 1⁄8
2 1⁄2 x 1 1⁄2 x 1⁄8
2 1⁄2 x 1 1⁄2 x 3⁄16
2 1⁄2 x 1 1⁄2 x 1⁄4
2 1⁄2 x 2 x 1⁄8
2 1⁄2 x 2 x 3⁄16
2 1⁄2 x 2 x 1⁄4
3 x 1 x 1⁄8
3 x 1 x 1⁄4
3 x 1 1⁄2 x 1⁄8
3 x 1 1⁄2 x 3⁄16
3 x 1 1⁄2 x 1⁄4
3 x 2 1⁄8
3 x 2 x 3⁄16
3 x 2 x 1⁄4
3 x 2 x 3⁄8
4 x 1 x 1⁄8
4 x 2 x 1⁄8
4 x 2 x 3⁄16
4 x 2 x 1⁄4
4 x 3 x 3⁄16
4 x 3 x 1⁄4
5 x 2 x 1⁄4
6 x 2 x 1⁄4
6 x 3 x 1⁄4
6 x 3 x 3⁄8
Equal Angle (mm)
20 x 20 x 2
20 x 20 x 3
25 x 25 x 2
25 x 25 x 3
30 x 30 x 2
30 x 30 x 3
40 x 40 x 2
40 x 40 x 3
40 x 40 x 4
40 x 40 x 5
50 x 50 x 2
50 x 50 x 3
50 x 50 x 5
50 x 50 x 6
60 x 60 x 6
70 x 70 x 7
80 x 80 x 8
100 x 100 x 10
Equal Channel (inch)
1⁄2 x 1⁄2 x 1⁄16
1⁄2 x 1⁄2 x 1⁄8
5⁄8 x 5⁄8 x 1⁄16
5⁄8 x 5⁄8 x 1⁄8
3⁄4 x 3⁄4 x 1⁄8
7⁄8 x 7⁄8 x 1⁄8
1 x 1 x 1⁄8
1 x 1 x 3⁄16
1 1⁄4 x 1 1⁄4 x 1⁄8
1 1⁄4 x 1 1⁄4 x 3⁄16
1 1⁄2 x 1 1⁄2 x 1⁄8
1 1⁄2 x 1 1⁄2 x 3⁄16
2 x 2 x 1⁄8
2 x 2 x 1⁄4
Unequal Channel (inch)
1 x 1⁄2 x 1⁄8
1 x 3⁄4 x 1⁄8
1 x 1 1⁄2 x 1⁄8
1 1⁄4 x 1⁄2 x 1⁄8
1 x 1 1⁄4 x 3⁄4 x 1⁄8
1 1⁄4 x 1 x 1⁄8
1 x 1 1⁄2 x 1⁄2 x 1⁄8
1 1⁄2 x 3⁄4 x 1⁄8
1 1⁄2 x 1 x 1⁄8
2 x 1 x 1⁄8
2 x 1 x 3⁄16
2 x 1 x 1⁄4 x 5⁄16
2 x 1 1⁄2 x 1⁄4
2 x 1 1⁄2 x 1⁄4 x 5⁄16
2 1⁄4 x 1 1⁄4 x 3⁄16
2 1⁄2 x 1 x 1⁄8
2 1⁄2 x 1 1⁄4 x 3⁄16
2 1⁄2 x 1 1⁄2 x 3⁄16
3 x 1 x 1⁄8
3 x 1 1⁄2 x 1⁄8
3 x 1 1⁄2 x 3⁄16
3 x 1 1⁄2 x 1⁄4 x 5⁄16
3 x 2 x 1⁄8
3 x 2 x 1⁄4 x 5⁄16
3 1⁄2 x 1 1⁄2
4 x 2 x 1⁄8
4 x 2 x 1⁄4 x 5⁄16
4 x 3 x 3⁄8
5 x 2 x 1⁄4 x 5⁄16
5 x 2 1⁄2 x 1⁄4 x 3⁄8
6 x 2 x 1⁄4 x 5⁄16
6 x 3 x 1⁄4 x 3⁄8
6 x 3 x 3⁄8 x 1⁄2
7 x 3 x 3⁄8 x 1⁄8
8 x 3 x 3⁄8 x 1⁄2
8 x 3 x 5⁄16 x 1⁄2

This is our standard size range. If you do not see the shape, size or grade you require, please contact us as we will be happy to assist you with reaching your requirements.

BS and International SpecOld BS DesignationDIN No.W. No.EN NumberMaterial Standard
6082H30AlMgSi13.2315EN755-5EN573-3
SiFeCuMnMgCrZnTiAI
.7-1.3.5.1.421.6-1.20.250.2.1REM
